Sewerin Aquaphon A200 SDR Pro Wireless Acoustic Leak Locator Kits
Please contact us to Purchase,
or for a Quotation, or Demonstration.
Electro-acoustic water leak detection: professional – flexible – intelligent
Ideal for detecting leaks in water pipe networks
When it comes to detecting leaks in water pipes by electro-acoustic means, the hearing and experience of the user are paramount. The AQUAPHON® system supports and simplifies this detection process thanks to the outstanding quality of its microphone and measuring technology, intelligent analysis functions and the practical, visual representation of results on the display.
Most reliable leak detection ever
This cutting-edge system offers comfortable, wireless handling, ease of use, versatility and a sturdy, ergonomic design. The AQUAPHON® system is ideal for both the pre-location and pinpointing of leaks for confident excavation. It is suitable for all your leak detection challenges and will help you locate leaks safely and reliably.
The measurement principle
The water flowing out of the leak in the pipeline causes the pipeline material to vibrate. These vibrations are transmitted throughout the line and can be picked up as structure-borne noise, even at distant contact points such as fittings. The vibrations are also transmitted up through the ground to the surface as ground-borne noise, although this is very muted. The AQUAPHON® system is your perfect companion for leak detection as it makes the vibrations audible to the human ear and records and visually displays the volume and frequency spectrum.

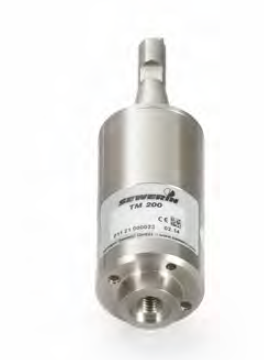

- Thanks to the high protection class (IP67) of the AQUAPHON® A 200 receiver, you’ll always be on the safe side, even in extreme environmental conditions. The receiver is impervious to dirt, dust and moisture. The TM 200 touch microphoneused for prelocation can even be used continuously under water (IP68).
- The symmetrical housing of the AQUAPHON® A 200 receiver, means that it can be operated by both right-handed and left-handed users with ease.

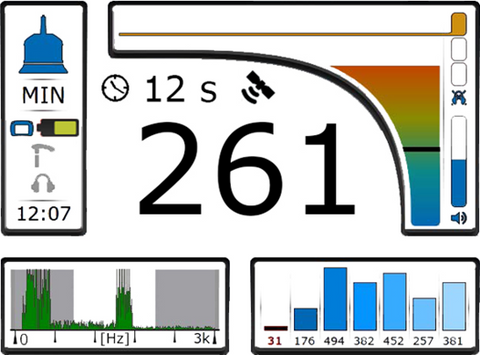

- You can see everything at a glance: The clear 5.7 inch receiver display shows the current acoustic intensity both in a graph and as a numeric value. Alongside, you can see the previous values for comparison purposes, as well as the current frequency analysis of the noise.
- A full charge of the integrated Li-Ion rechargeable battery in the AQUAPHON® A 200 receiver, F6 wireless headphones and TS 200 carrying rod is enough for a full day’s work.

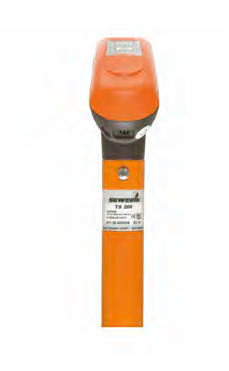

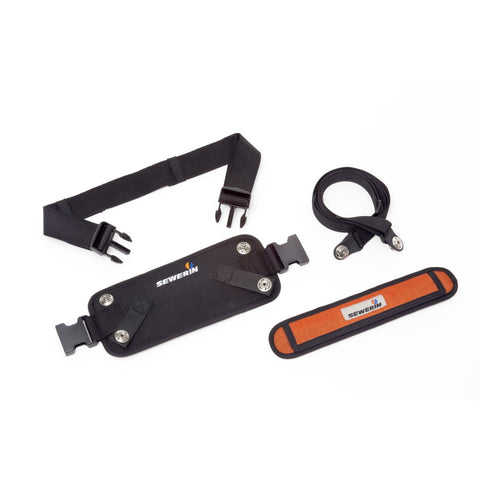

- Work effortlessly and ergonomically. The TS 200 carrying rod with its balanced, ergonomic design fits snugly into your hand. The flexible carrying system for the receiver with two cross belts can be adjusted individually and enables various carrying positions.
NEW FEATURES FOR 2020!

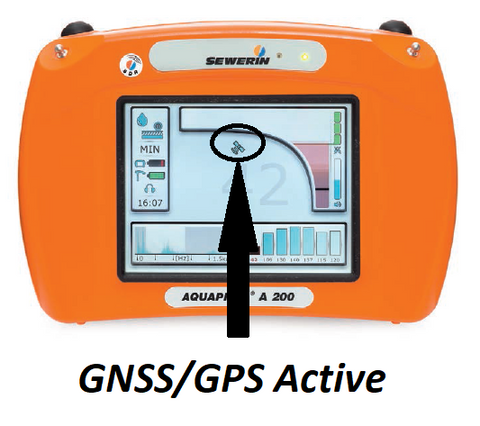

- Internal GNSS (GPS) Receiver to capture GIS leak locations

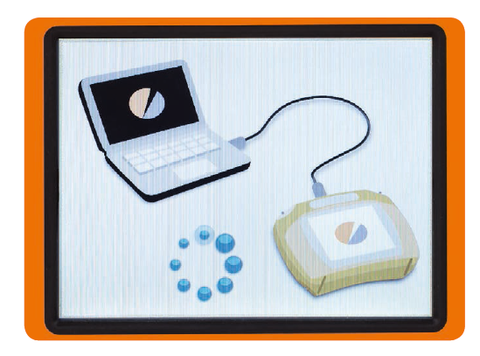

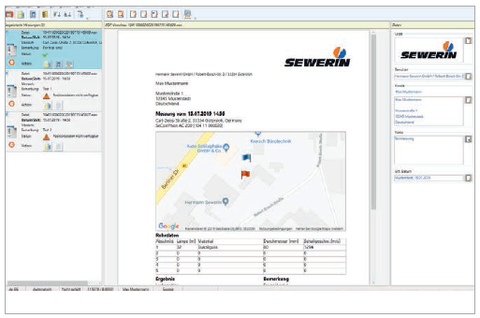

- FREE WaterCom PC software for database storage and leak mapping
- Export location data to external GIS databases and maps.
- Updated Noise Filtering for easier use

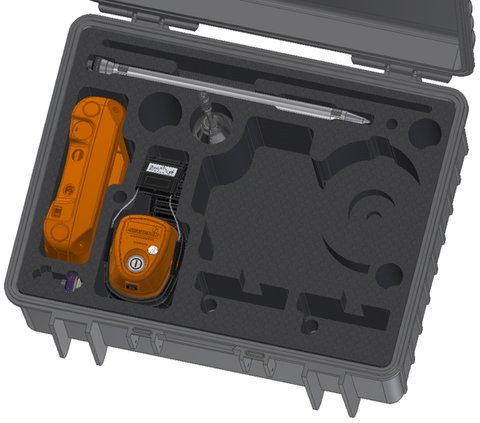

All 4 of the below standardized kits include the A200 Receiver, Wireless Headphones, AC/DC charger and car charger, carry belt and hand strap, hard carry case plus the items below:

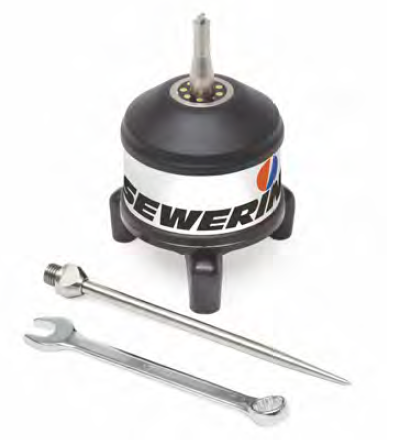

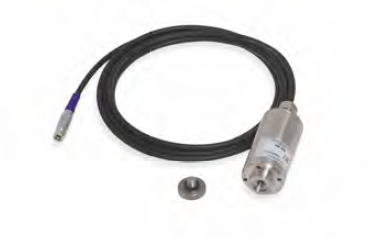

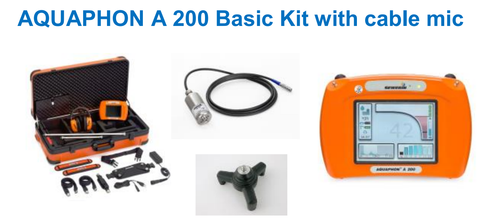

- A200 Basic Kit (1 Mic) - This kit contains the UM200 cable mic with protector, Contact magnet, tripod for ground listening The mic can be used with the test tips, contact magnet, or tripod

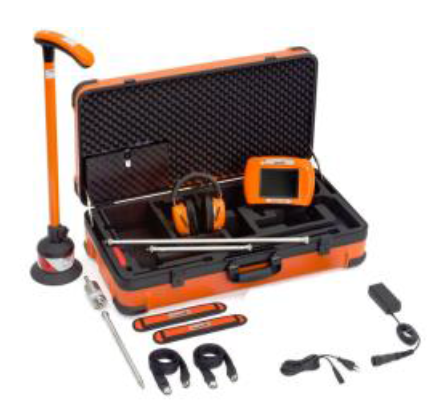

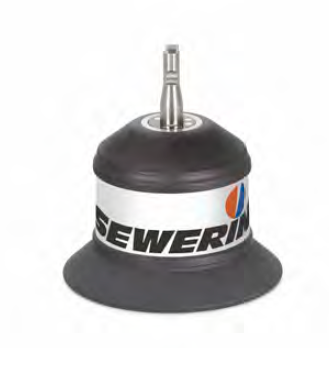

- A200 Pro Basic Kit (2 Mic) - This kit contains adds the wireless carry rod, touch microphone for carry rod, and ground wind protected mic.

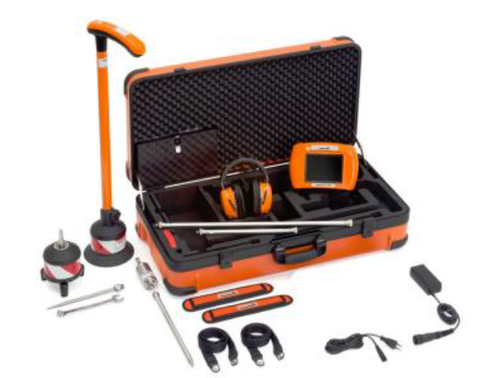

- A200 Pro Plus Kit (3 Mic) - This kit contains adds the wireless carry rod, touch microphone for carry rod, and ground wind protected mic. and Soft Soil Mic for carry rod

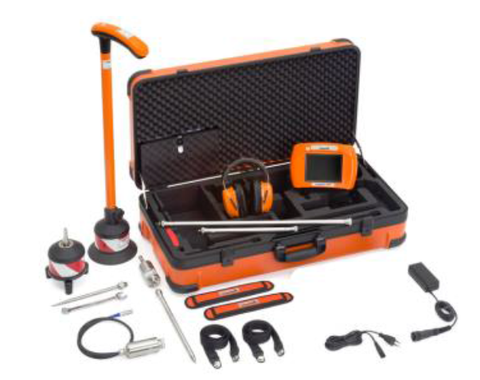

- A200 Pro Complete Kit (4 Mic) - This kit contains adds the wireless carry rod, touch microphone for carry rod, and ground wind protected mic. and Soft Soil Mic for carry rod plus the cable mic
A200 - Customized Kits - We can customize any kit with a selection of 1 to 4 microphones and even with the AC200 receiver with correlation upgrade capability on request
Hard Hat Safety Helmet Headphones available as an option
This item ships ONLY to Ohio and Michigan customers. Please visit sewerin.com to find the local distributor for other states.
