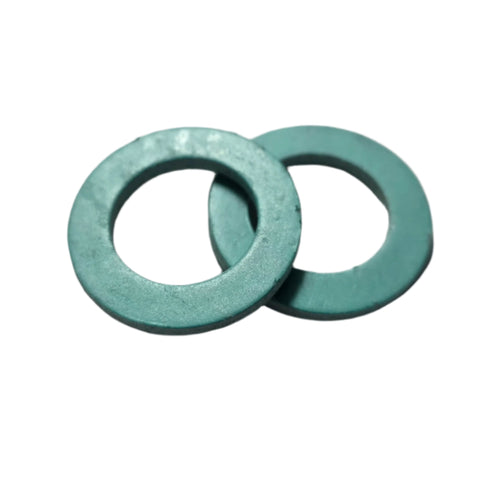

Water Meter Expansion Connection Flat Gaskets For Female end of Yoke Expansion Wheel

Utility Technologies

  • $7.20

Expansion Connection Replacement Gasket

For FEMALE end of Yoke Expansion Connector

These gaskets are for the female end of a Yoke Expansion Connection. Whenever a yoke expansion connector (expansion wheel) is re-used, the gaskets should be refreshed and replaced. Older units are probably compressed, dirty, and may not meet current ANSI/SNF-61 requirements for potable water. Old gaskets may be hard fiber or rubber and must be removed and changed. New gaskets are NSF-61 approved EPDM Rubber meeting current SDWA standards.

For Yoke Expansion Connectors only. Not for use as Yoke End gaskets, or meter coupling gaskets. See Photo for correct usage.

Dimensions by Expansion Connection Size:

 Meter Size Gasket Cross References Expansion Connector Dimensions
5/8" Meter NSF210, GT-210 EC-1 11/16" I.D. x 31/32" O.D. x 1/8" thick
5/8" x 3/4" or full 3/4" Meter NSF196, GT-196 EC-23 13/16" I.D. x 1-7/32" O.D.  x 1/8" thick
1" Meter NSF211, GT-211 EC-4 1-1/8" I.D. x 1-9/16" O.D. x 1.8" thick


Material: Black EPDM Rubber
