Micronics Ultraflo OC5000 Open Channel Flow Meter For Sewer


This item is not available to purchase online.

Please contact us for Pricing Options,
a Quotation, or Demonstration.

Micronics Ultraflo OC5000
Open Channel Flow Meter
For Sewer

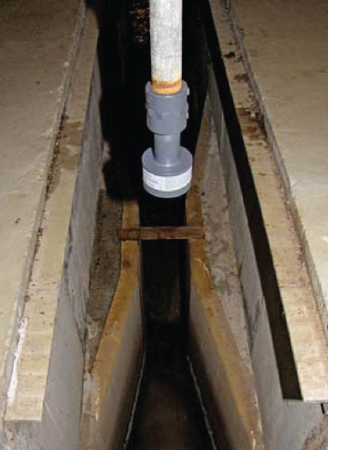

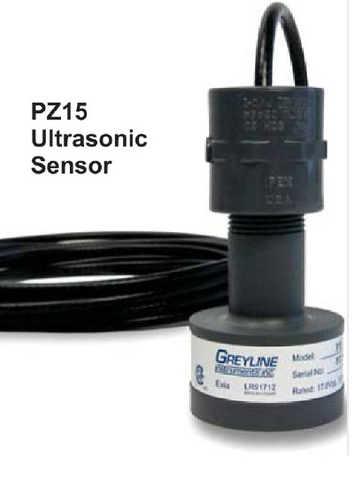

The UF OC5000, an open channel flow meter, uses a non-contacting ultrasonic sensor mounted over a flume or weir to measure flow. It is accurate, reliable and verifiable. The separate, watertight electronics/ display enclosure can be mounted within 150 m (500 ft) of the sensor. The UF OC5000 continuously displays, totalises, transmits and data logs open channel flow.

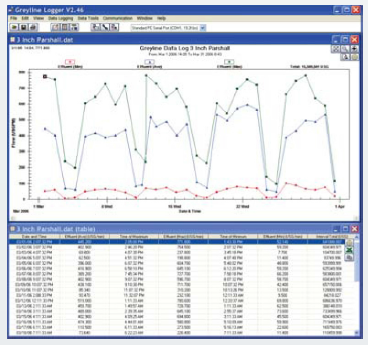

Use the built-in keypad for fast, easy calibration with menu selection of flume or weir and measurement units (e.g. gallons, litres etc.). Calibration values and data logs are password-protected and retained during power interruptions. The UF OC5000 will display on-screen flow reports with daily total, minimum, maximum and average flow and will transfer data logs to a USB flash drive.
PC software is included.

  • Partial
  • Open Channel Application
  • Flume or Weir


  • Works with any flume or Weir
  • Built-in-Totaliser
  • Password Protected


  • Simple 5-key Calibration
  • Password Protected
  • 2 million point Data Logger
  • On-screen Flow Reports
  • USB Output to Flash Drives
  • 4-20mA/0-5V Output

    Call or email us for a quote!
