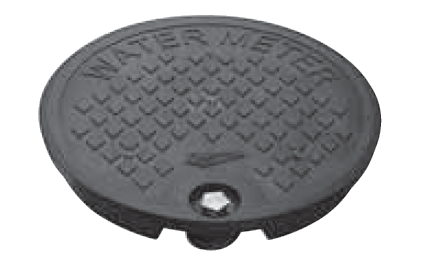

Trumbull Type A, C, and X Polymer Meter Box Cover - Solid Top Style

Trumbull Manufacturing

  • $39.90

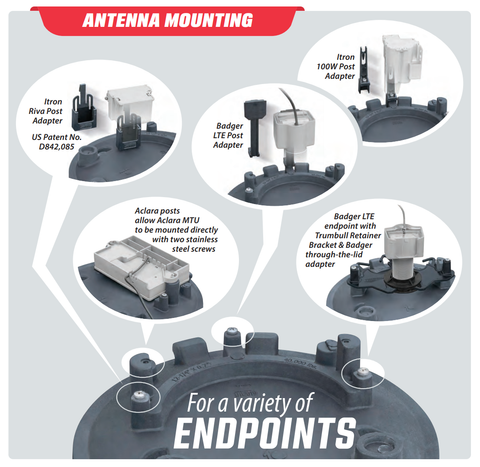

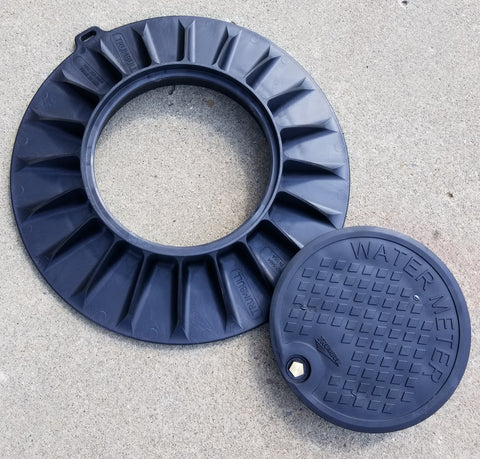

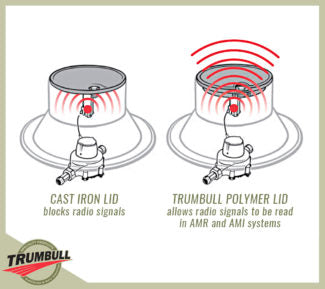

Trumbull Solid top lid for Type A, C, and X meter box frames/rings, or Trumbull Polymer 18"-21" meter box frame. Under lid AMR/AMI antenna mounting is possible with the optional universal bracket or post mounts.

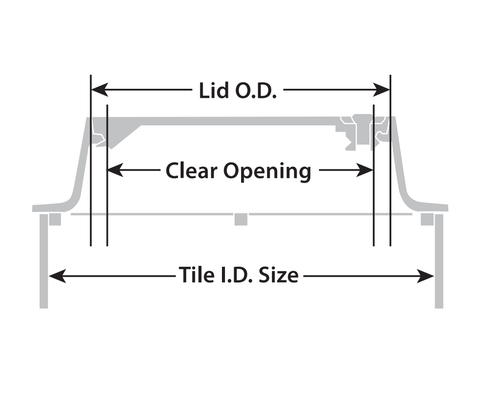

  • 11-1/2” Clear Opening
  • 12-1/4” Outside Diameter
  • 0.65” Thickness Rim

    Fits Type A Rings made by:

    • Trumbull Polymer A-style Frame

    • Ford Meter Box A, C, and X Style Frames

    • A.Y. McDonald Type A and Type C

    • Tyler 6150 Frame

    • May fit others, see dimensions

    Note that a Type A lid fits flush IN the top of the ring. Type X and C fit ON top of the ring. Type X lids fit the ring, but do not hinge to remain standing up.

    Detailed Specs:

    • ADA compliant slip resistant surface

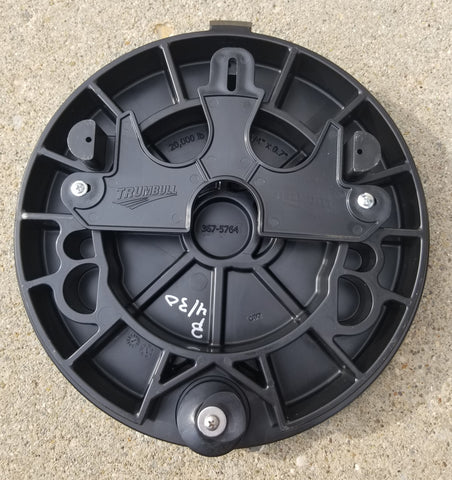

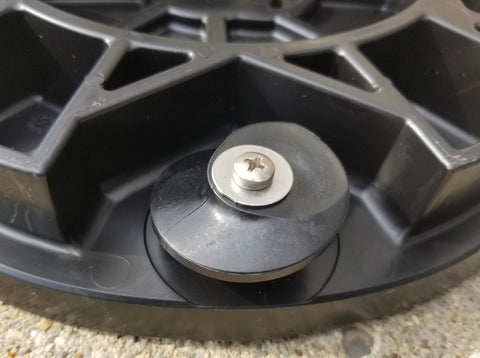

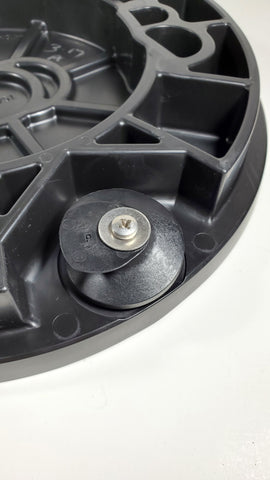

    • 20,000 lbs. lids furnished with nylon worm gear.
      • (Also available with ductile worm gear (special order).

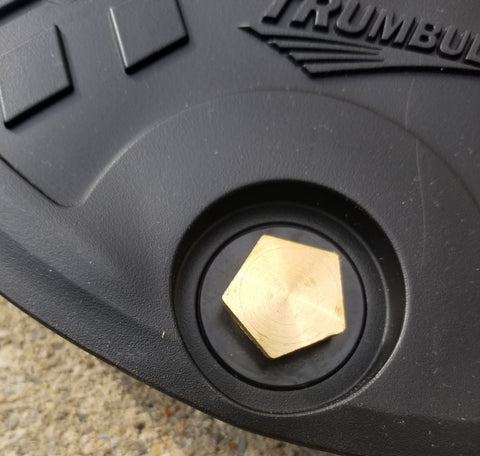

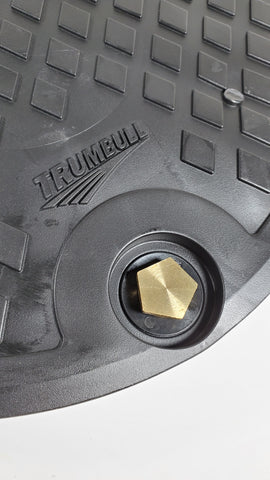

    • Lids are furnished with standard (27/32”) pentagon bolt.
      • Also available with large (1-1/32”) pentagon bolt (special order).

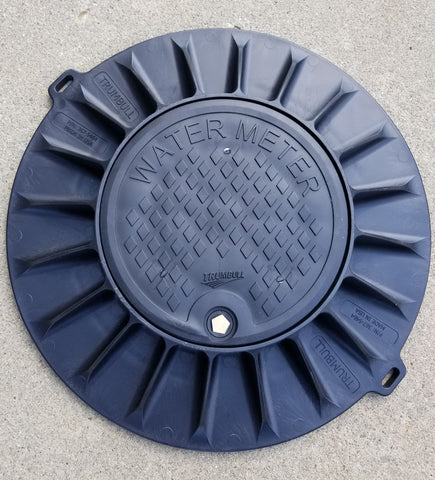

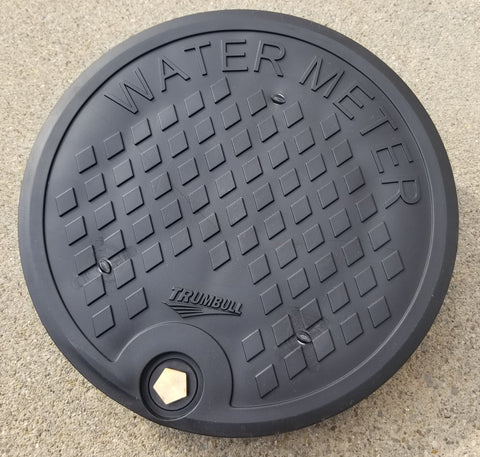

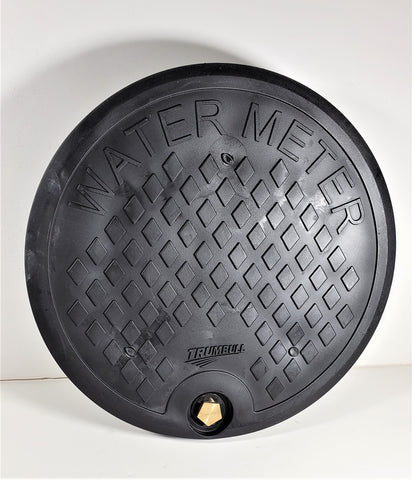

    • Lids furnished marked “WATER METER”. (inquire about custom lettering)
    • Bearing washers located above and below 20,000 lbs. lids are UHMWPE.
    • Badger/Kamstrup Counter bore Type A cover part number  367-5810

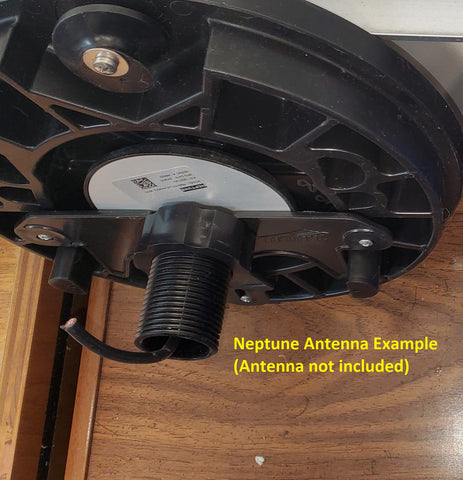

    • Antennas and brackets if shown are for illustration only and are not included. Brackets available in our other listings.
