Micronics Ultrasonic Clamp On Flow Meter Ultraflo U1000

Micronics

This item is not available to purchase online.

Please contact us for Pricing Options,
a Quotation, or Demonstration.



Ultraflo U1000
Permanent Clamp-on Flow Meter

The U1000 is an inexpensive clamp on ultrasonic flow meter.  This is an inexpensive solution for measuring flow rate.  Outputs include volume pulse output and 4-20mA flow rate output.  This inexpensive ultrasonic clamp on flow meter meter can be used as a standalone meter or as an integral part of a SCADA, AMR, or AMI System.

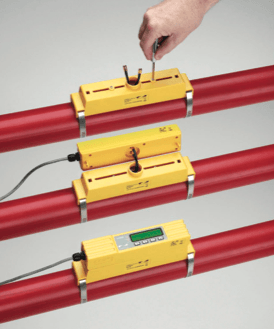

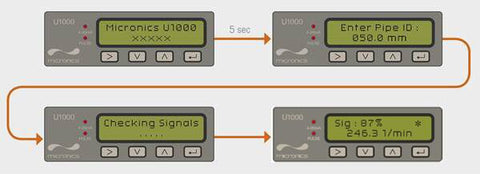

Simple to install: Just clamp on to the pipe requiring flow data, connect power (12-24 V AC/DC or add our stepdown transformer for 110V use) and enter the pipe inner diameter.  That’s it!  No specialist skills or tools required!

The cost effective alternative to traditional in-line meter installation.  Save money with dry servicing, installing with minimum or no downtime and maximum availability!  Compact, rugged, inexpensive, and reliable, the U1000 ultrasonic clamp on flow meter has been designed to provide sustained performance in industrial environments.

  • Full Pipe
  • Clear Fluid
  • Permanent Application
  • No Data Logging
  • 3/4" to 4" Pipe
    • Model 804-11001400 - 0.984″-4.33″ OD Pipe; 0.79″ ID – 4.33″ ID
  • 4" to 6" Pipe
    • Model 804-11004600 - 4.92-7.08" OD Pipe; 4.39″ ID – 6.49″ ID
  • Pulse, or Pulse and 4-20 Outputs

Call or email us for a quote!

Literature Link
