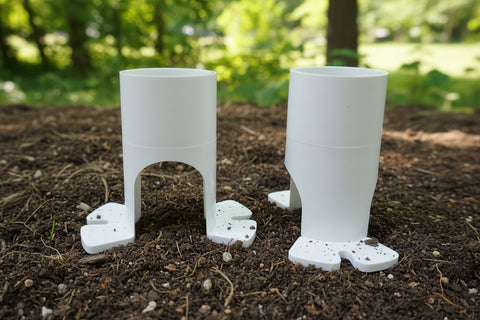

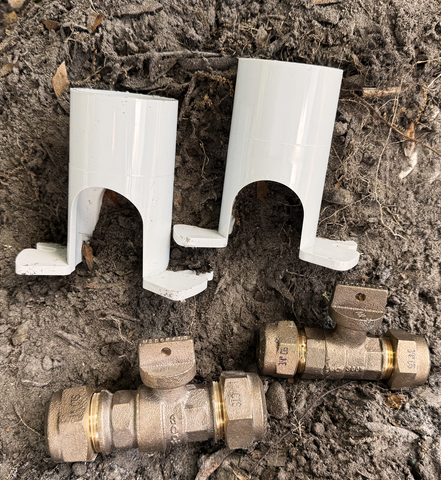

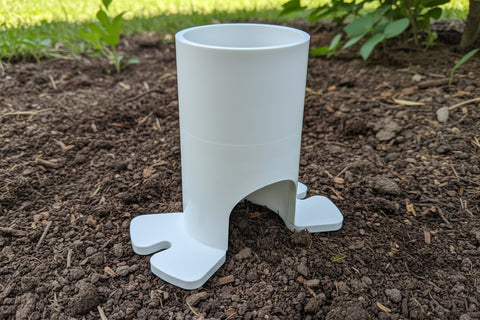

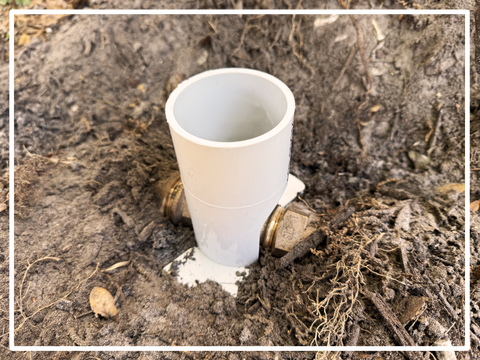

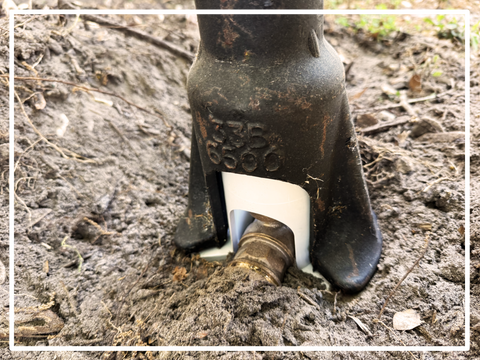

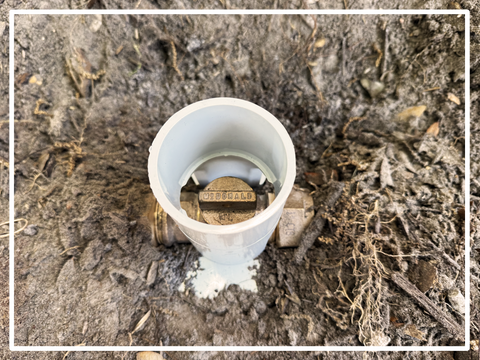

The VKAD is a compact tool engineered to fit inside a curb box – the protective sleeve that provides access to underground curb shutoff valves. It fits between the curb box and the curb valve to keep the valve centered and aligned properly. It prevents misalignment after installation due to ground movement or settling of the ground around it..  Its primary function is to keep the curb box centered over the valve's tee head, ensuring quick and accurate alignment for the curb key. Fitting tighter to the curb stop than the open doghouse door on a curb box for up to 2" valves, also allows less dirt and debris to flow into the curb box covering the key.

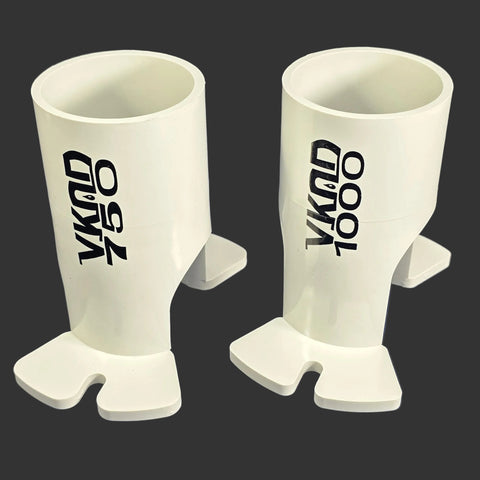

The VKAD is available in two sizes for 3/4"  and 1" Curb Valves. It works in most standard 2-1/2" Iron or Plastic curb boxes.

Details:

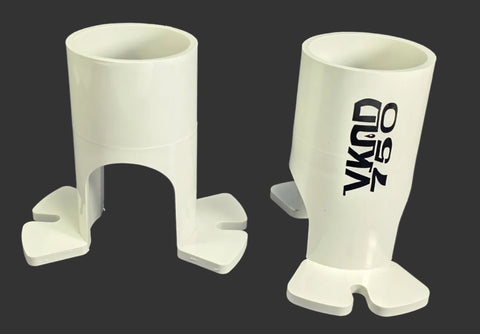

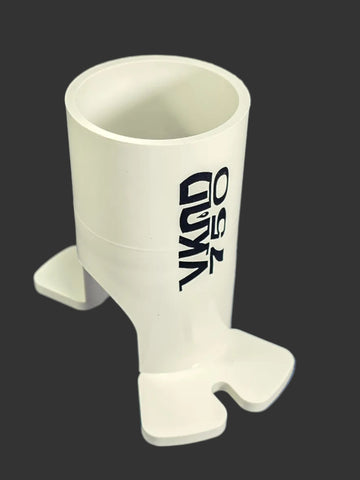

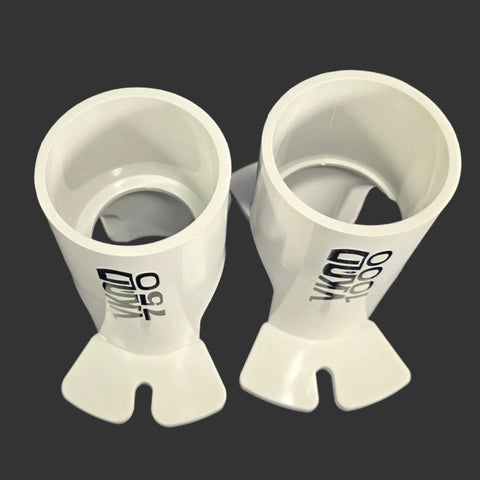

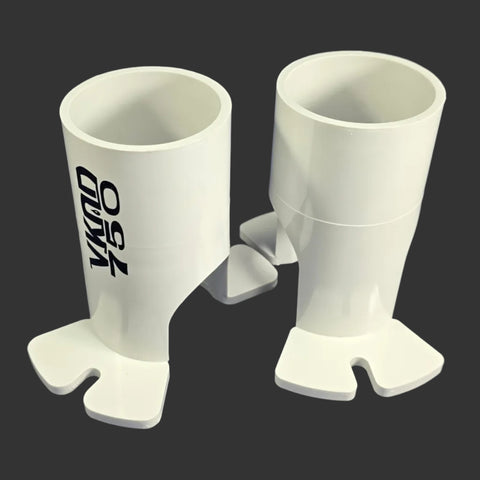

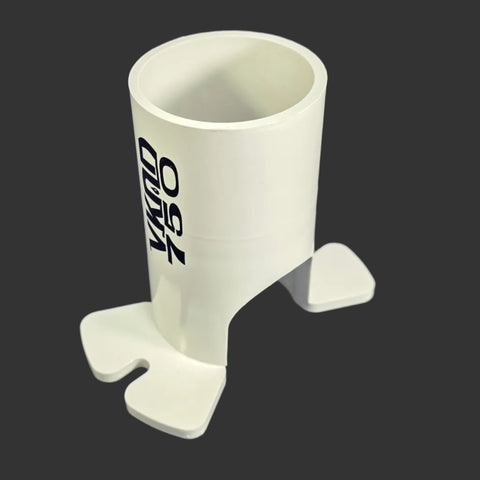

• 3/4" Part number - VKAD-750

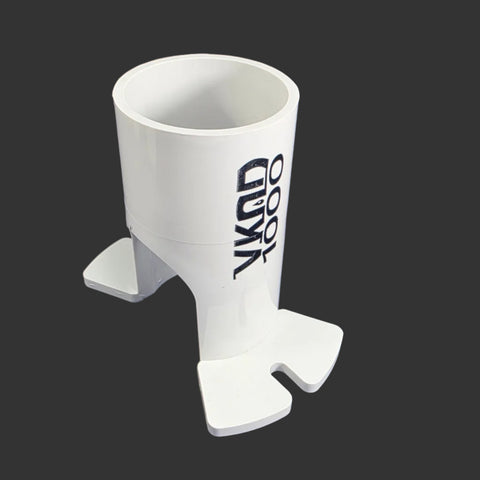

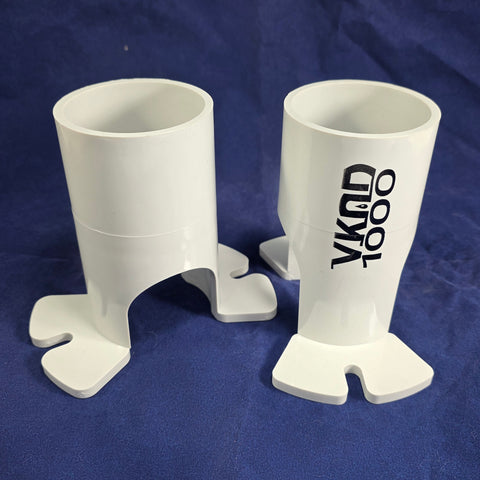

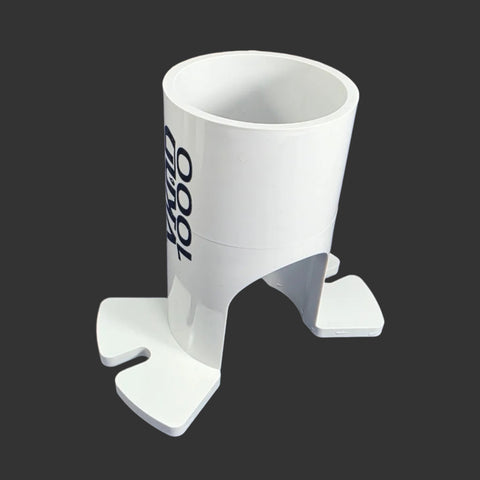

• 1" Part number - VKAD-1000
• Material - Polycarbonate
• Color - White
• Compatible with most brands of with standard 2-1/2" Curb Boxes
• Made in USA
• Dimensions
  • Height 5"
  • Outer diameter of top 2-13/16"
  • Inner diameter of top 2-7/16"

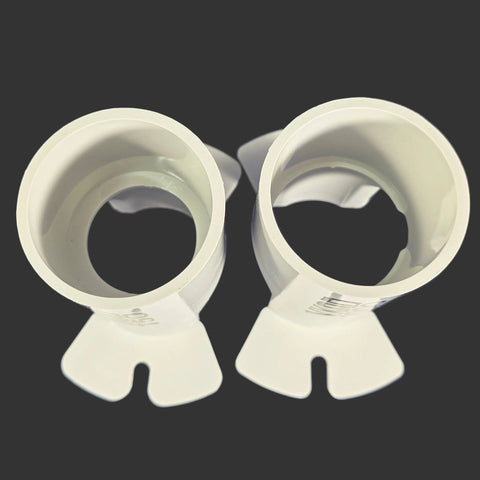

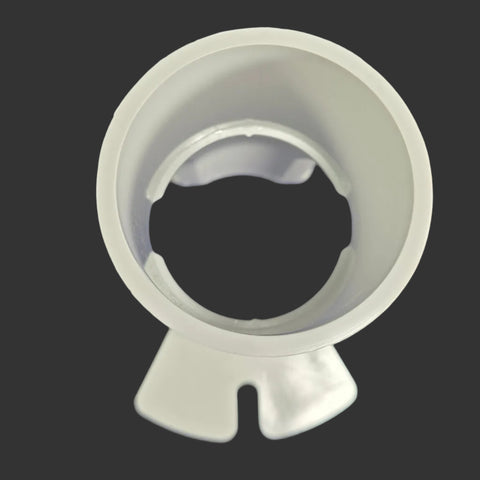

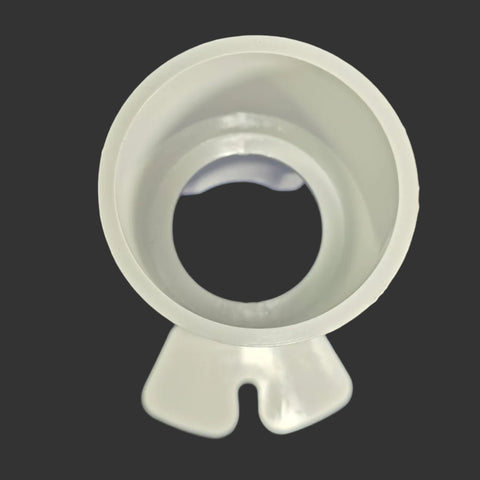

  • 3/4" VKAD 750 - inner alignment ring I.D. 1-7/8"

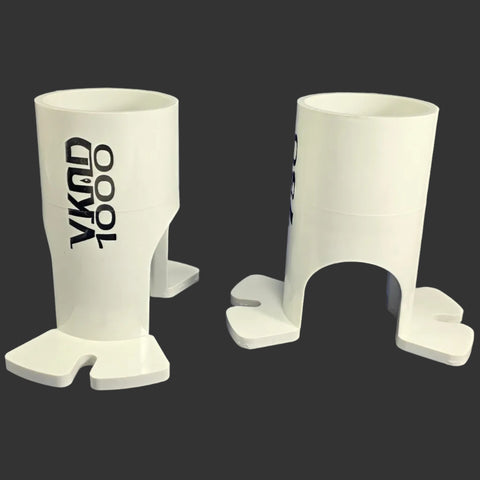

  • 1" VKAD 1000 - inner alignment ring I.D.  2-1/4"

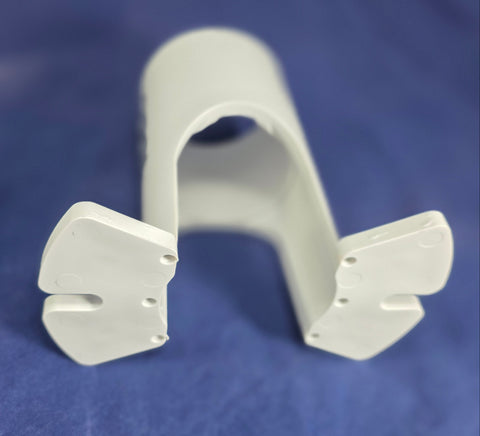

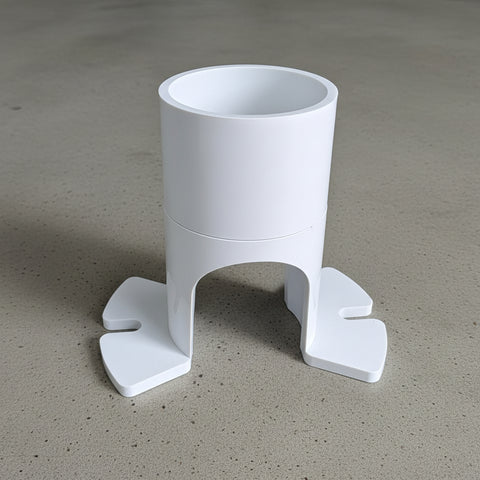

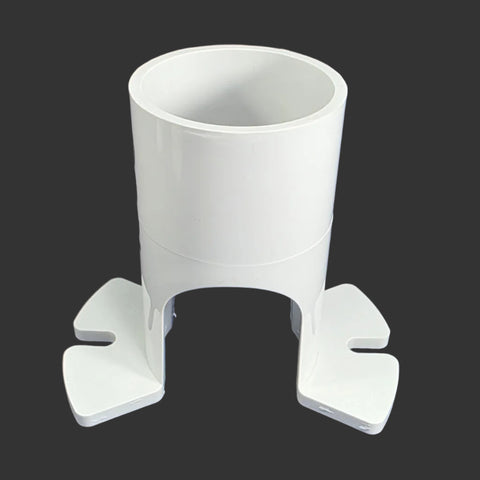

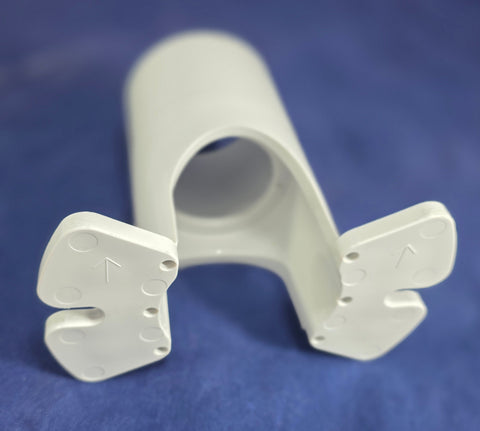

  • Base wing spread 5-1/2"

Specifications Sheet
